What Is Black Liquor?

Black liquor is a high-temperature, highly alkaline byproduct generated during the chemical pulping process. It contains lignin, hemicellulose degradation products, inorganic chemicals, and some residual fibers. Due to its high heating value, black liquor serves as a major fuel source for recovery boilers in paper mills. Efficient utilization of black liquor heat is essential for sustainable production.

How Does a Black Liquor Heat Exchanger Work?

A black liquor heat exchanger transfers thermal energy between black liquor and another fluid, such as dilute black liquor, water, or steam. The basic principle involves using hot, concentrated black liquor to heat a cooler fluid, improving process efficiency and reducing steam consumption.

Common Types of Black Liquor Heat Exchangers:

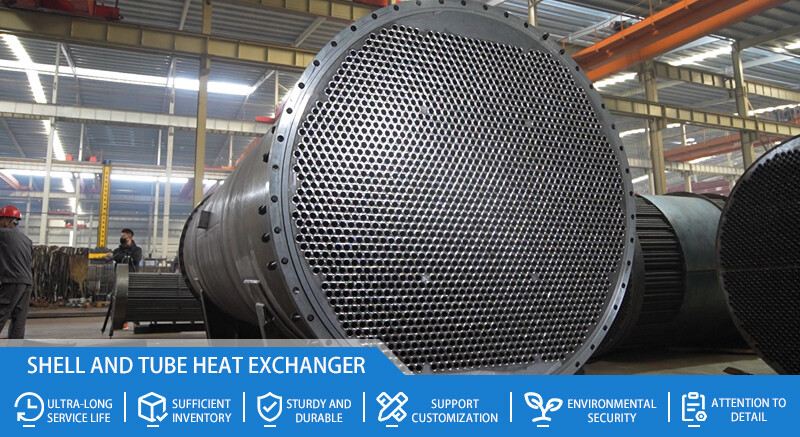

• Shell-and-Tube Heat Exchangers: Suitable for high-pressure and high-temperature applications.

• Plate Heat Exchangers: Compact design with high heat transfer efficiency, ideal for medium-duty service.

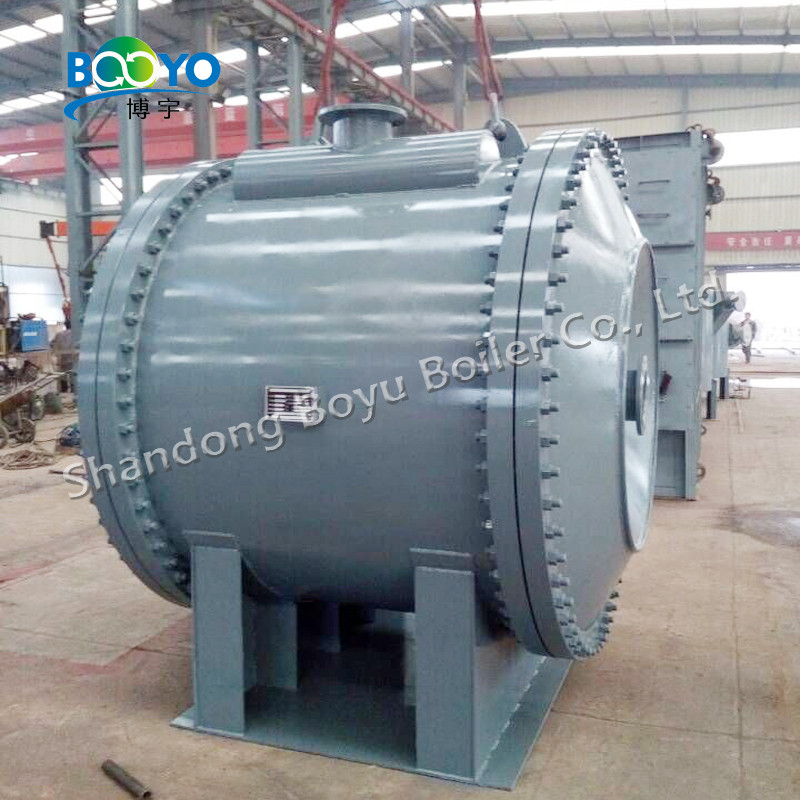

• Spiral Plate Heat Exchangers: Excellent for handling viscous fluids with high fouling tendencies.

Key Features and Advantages

1. Corrosion Resistance
   Black liquor is highly corrosive. Therefore, heat exchangers are typically made from stainless steel, duplex steel, or nickel-based alloys to ensure long service life.

2. High Heat Transfer Efficiency
   Optimized flow design and anti-fouling structures allow for maximum thermal recovery.

3. Energy Savings and Cost Reduction
   Recovered heat reduces steam demand, lowering fuel consumption in recovery boilers and improving overall plant efficiency.

4. Easy Maintenance
   Advanced designs include online cleaning systems or easy disassembly to handle scaling and deposits effectively.

Applications in the Pulp and Paper Industry

Black liquor heat exchangers play a vital role in:

• Evaporation Systems: Preheating weak black liquor before entering the evaporator, reducing steam usage.

• Recovery Boilers: Improving thermal efficiency by transferring waste heat to feedwater or other process streams.

• Energy Recovery Systems: Capturing excess heat for reuse, cutting operational costs.

Environmental and Economic Benefits

Implementing an efficient black liquor heat exchanger offers:

• Reduced Carbon Emissions: Less steam and fuel consumption means lower CO₂ emissions.

• Compliance with Environmental Regulations: Supports green manufacturing and sustainability goals.

• Significant Energy Savings: A well-designed system can cut energy costs by 10–20%, resulting in substantial annual savings.

Future Trends in Black Liquor Heat Exchanger Technology

The industry is evolving toward:

• Self-Cleaning and Anti-Clogging Designs: Minimizing downtime and maintenance.

• Smart Monitoring Systems: Real-time tracking of temperature, pressure, and fouling levels for predictive maintenance.

• Advanced Materials: Improving corrosion resistance while reducing costs.

• Modular and Compact Designs: Easier installation, scalability, and integration with existing systems.

Why Choose BOOYO Heat Exchange Solutions?

At BOOYO Heavy Industry Technology Group, we specialize in designing and manufacturing high-performance black liquor heat exchangers tailored for the pulp and paper industry. Our solutions ensure maximum heat recovery, energy efficiency, and long-term reliability, helping clients achieve sustainability and profitability.
