Introduction

A steam condenser is a vital heat exchange equipment widely used in power plants, chemical plants, metallurgy, and coking industries. Its primary function is to condense exhaust steam from steam turbines into water, maintaining vacuum inside the turbine and enabling efficient recycling of condensate back to the boiler. By lowering exhaust pressure, the condenser significantly improves the thermal efficiency of the power generation cycle.

Working Principle

The condenser operates on the principle of indirect heat exchange:

• Steam side (shell side): Low-pressure steam enters the condenser shell and comes into contact with the external surface of the cooling tubes.

• Cooling water side (tube side): Circulating cooling water or seawater flows inside the tubes, absorbing heat from the condensing steam.

• Condensate recovery: As the steam condenses into hot water (condensate), it is collected and pumped back to the boiler, ensuring a closed-loop system.

• Vacuum creation: The condensation process reduces steam volume sharply, generating vacuum, which enhances steam turbine efficiency.

Structural Features

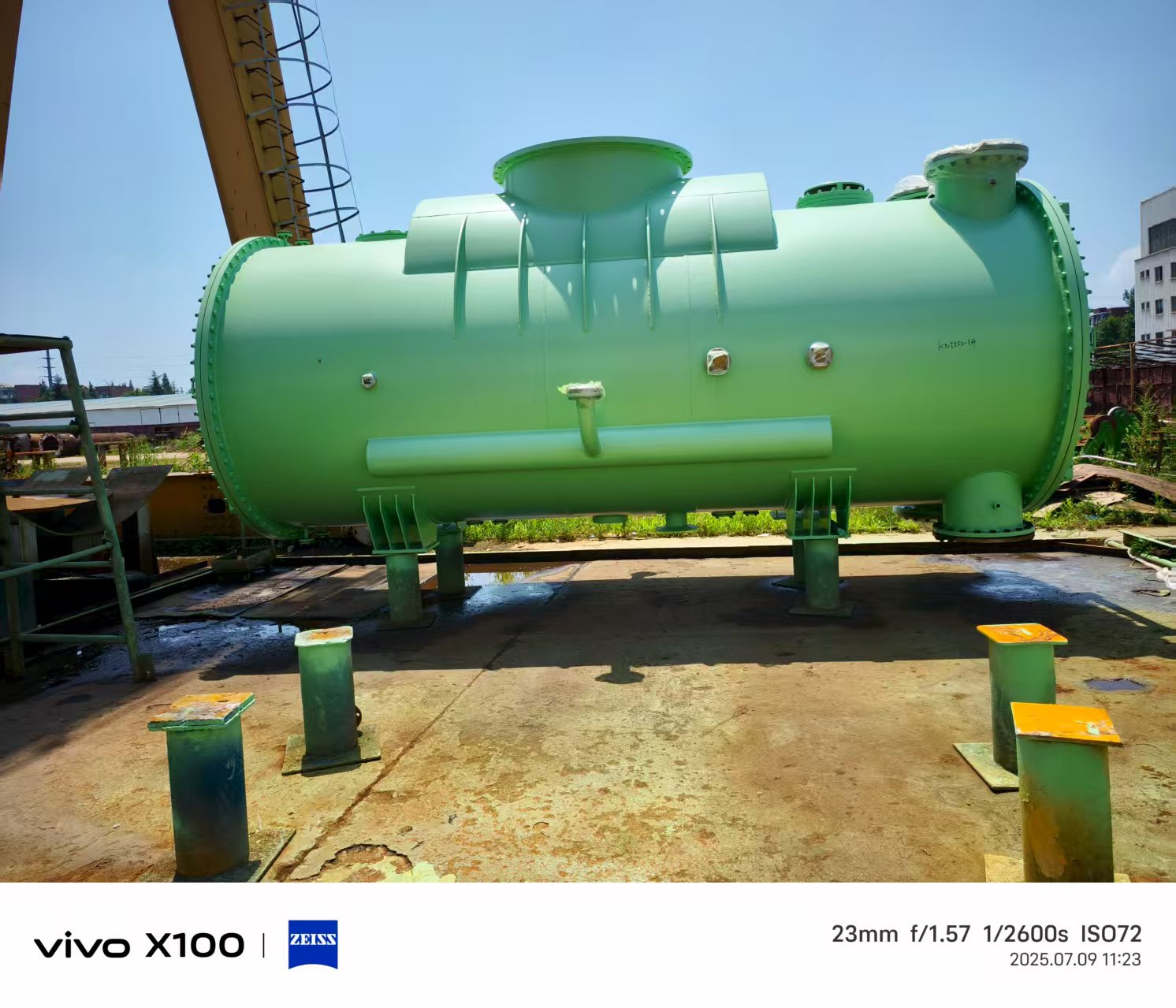

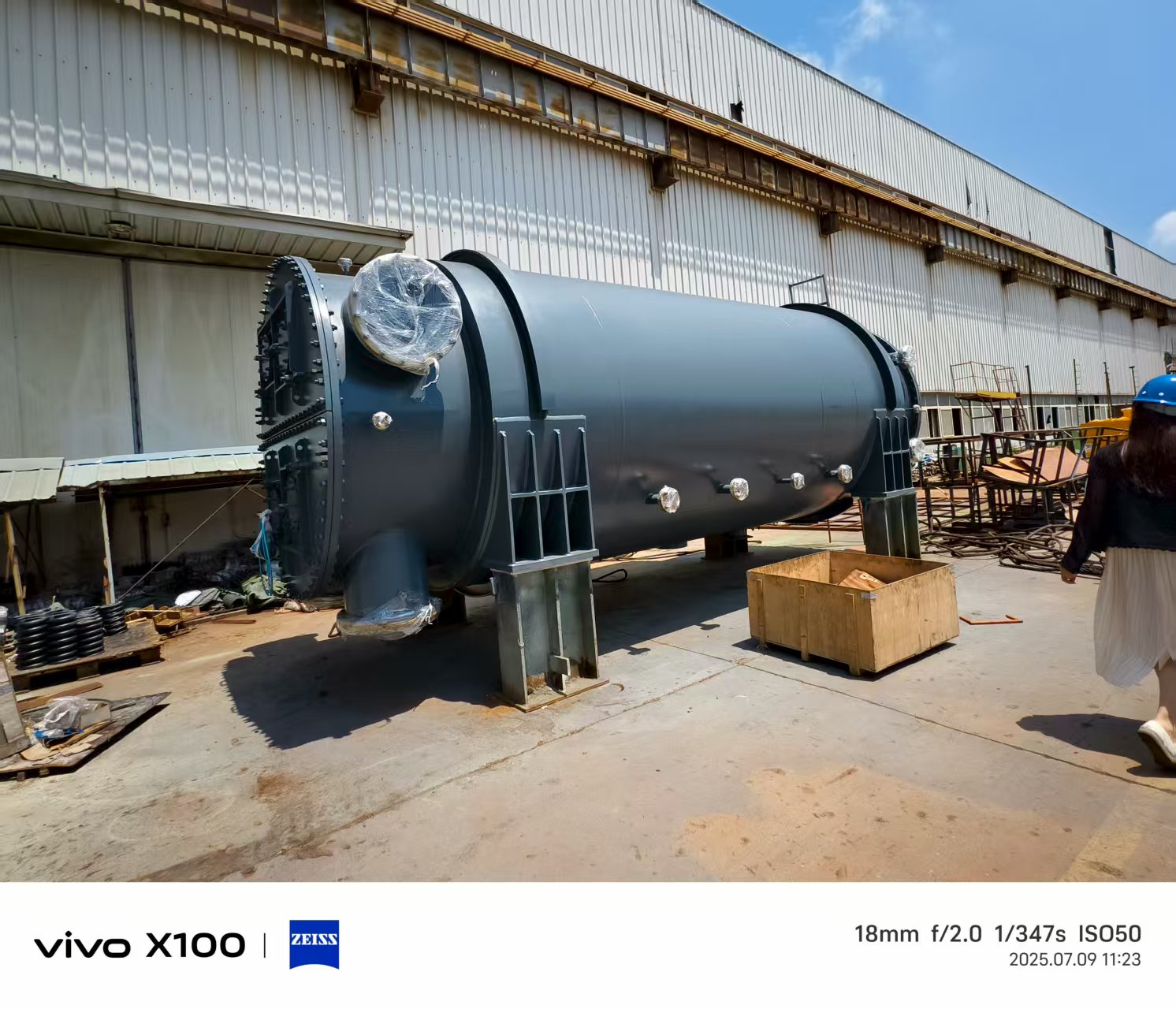

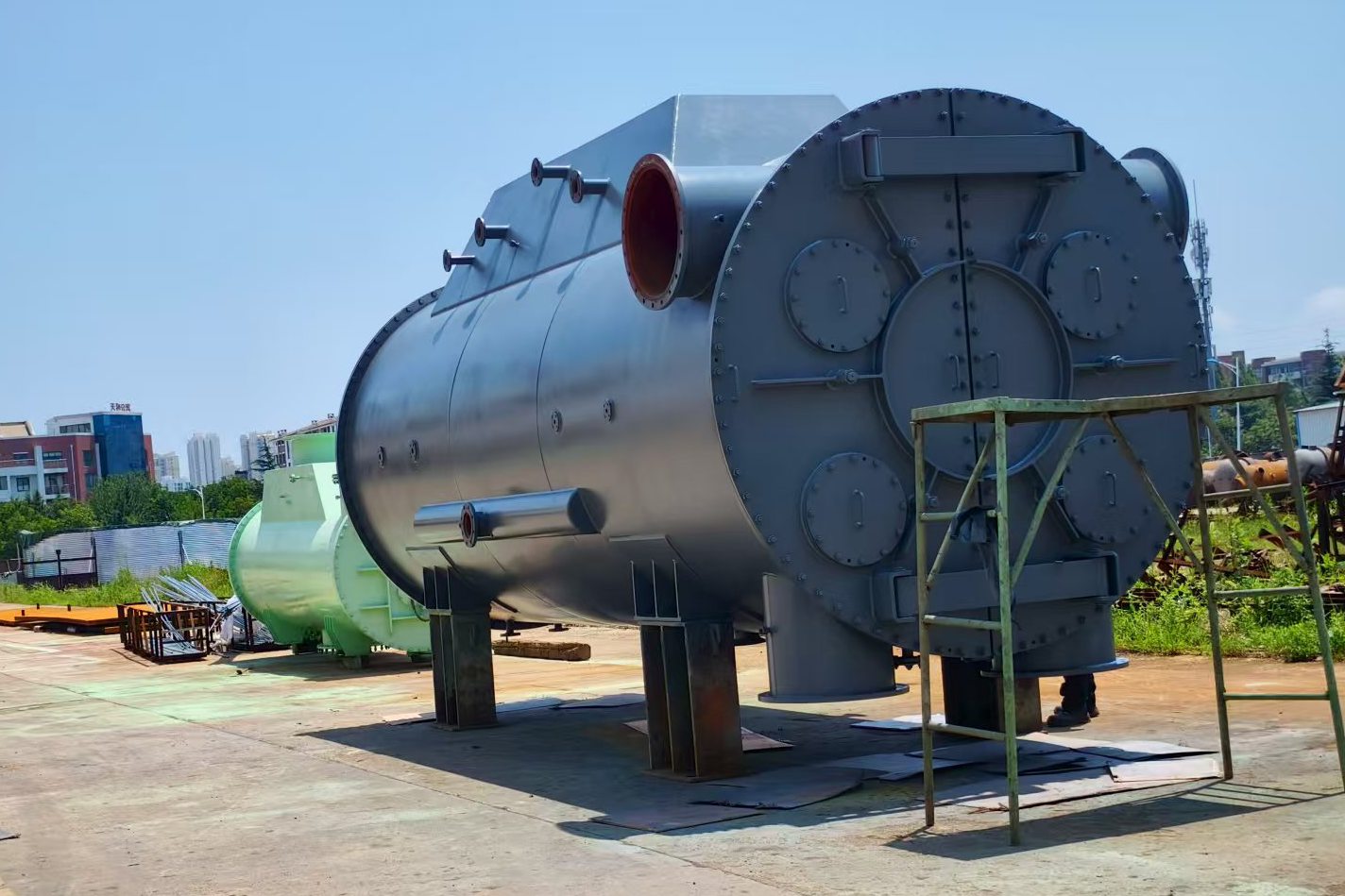

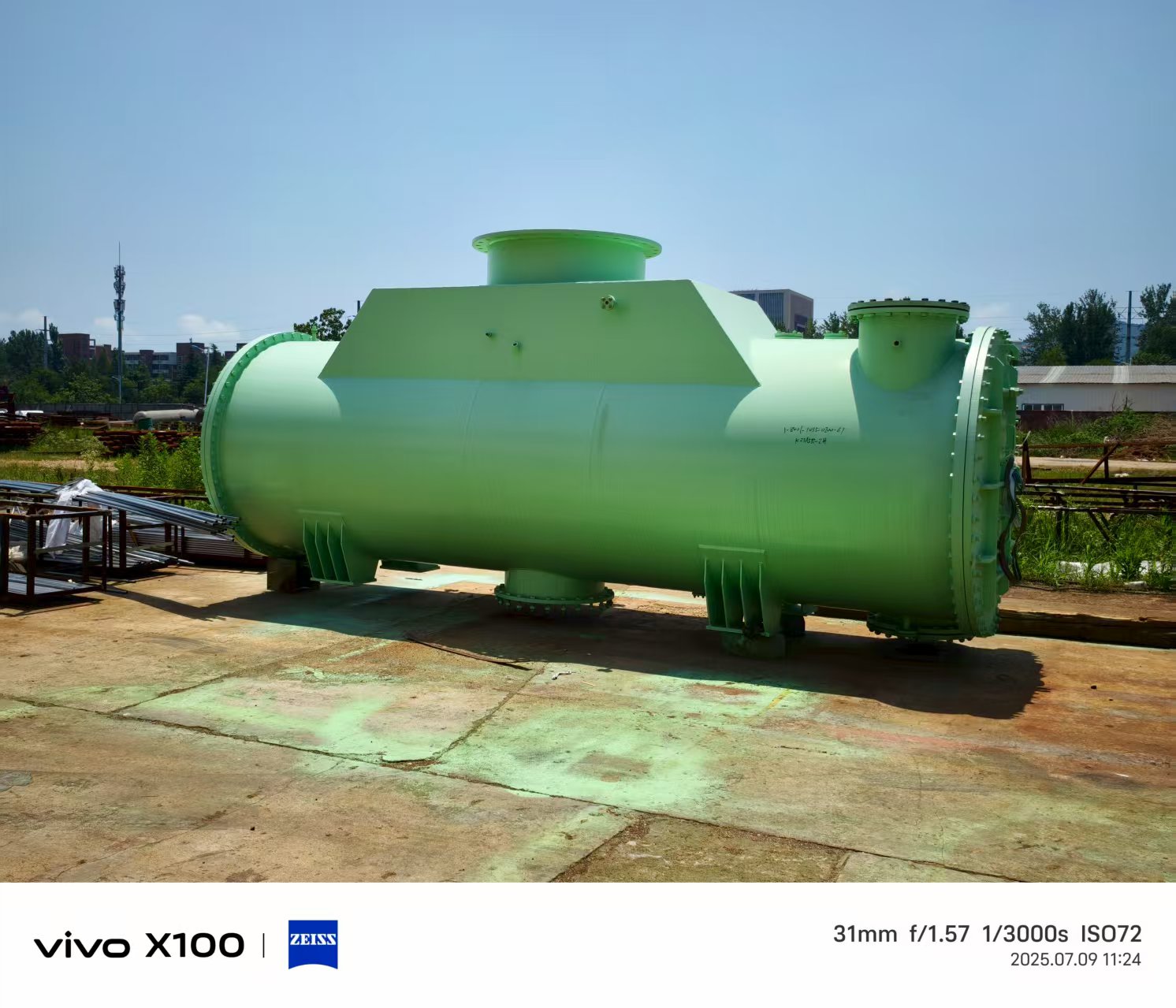

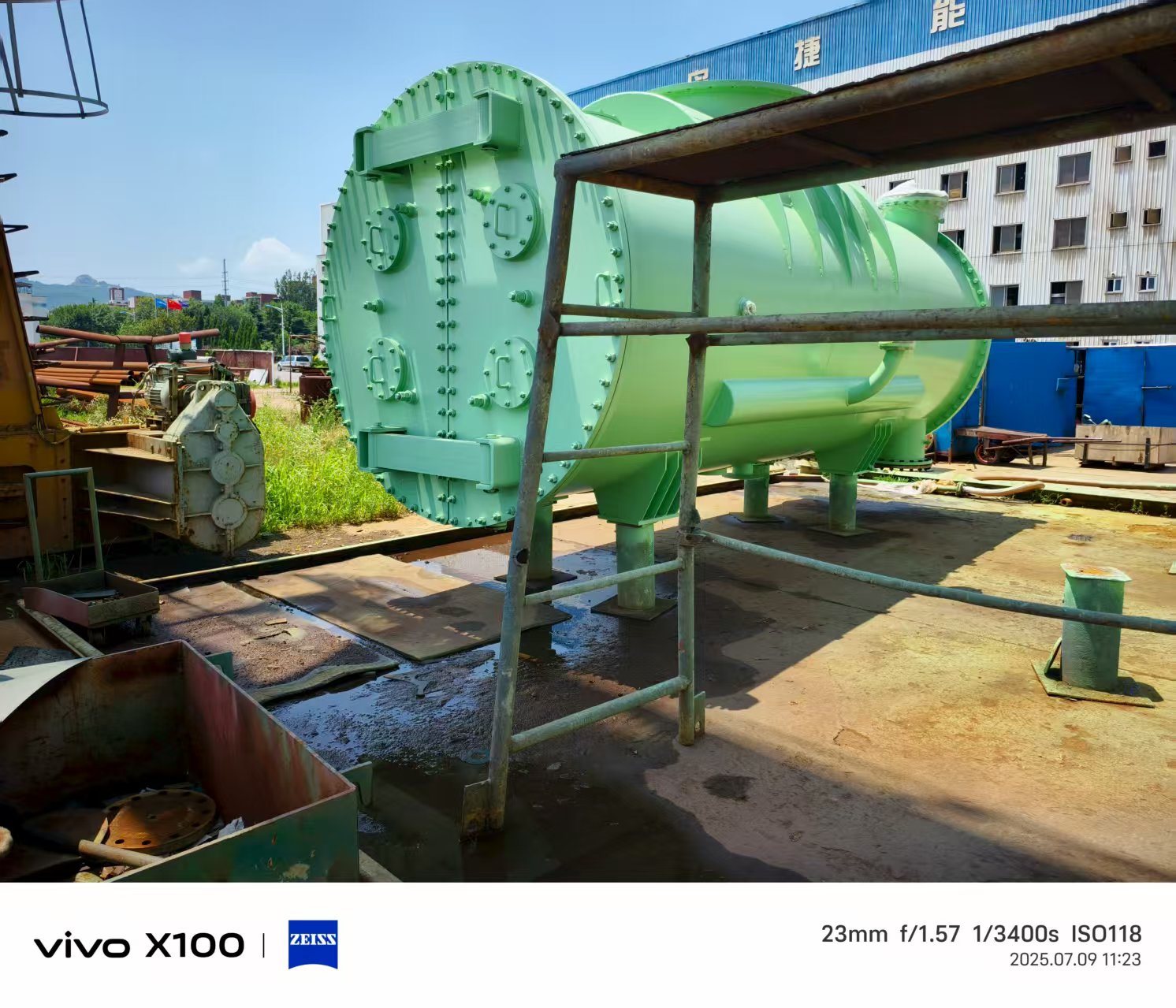

1. Shell and Tube Design – The condenser typically adopts a horizontal shell and tube structure, providing large heat transfer surface area.

2. Tube Bundles – Heat exchange tubes made of carbon steel, stainless steel (304, 316), copper alloys, or titanium, depending on water quality and working conditions.

3. Water Chambers – Designs include fixed tube sheet, floating head, or U-tube type, allowing for thermal expansion and convenient maintenance.

4. Auxiliary Systems – Equipped with air extraction, venting, and water treatment devices to ensure stable vacuum operation.

Applications

• Power Plants – As a steam turbine condenser, converting turbine exhaust steam into water and ensuring continuous circulation.

• Chemical Industry – Used as a process condenser for steam condensation, solvent recovery, and cooling operations.

• Metallurgy and Coking – For high-temperature gas and steam cooling.

• Industrial Utilities – Any process requiring efficient steam condensation and heat recovery.

Advantages of BOOYO Condenser

• High Heat Transfer Efficiency – Large surface area, fast condensation, and reliable operation.

• Material Flexibility – Options include stainless steel (304, 316), copper, and titanium for seawater and corrosive environments.

• Durability and Reliability – Robust shell structure ensures long service life under demanding conditions.

• Easy Maintenance – Detachable covers and accessible tube bundles allow cleaning and replacement.

• Wide Range of Capacities – Heat transfer area from 50 m² up to 50,000 m², customized according to client needs.

Technical Specifications (Typical)

• Heat Transfer Area: 50 – 50,000 m²

• Design Pressure: Atmospheric to 0.6 MPa

• Tube Diameter: 16 – 38 mm

• Materials: Carbon Steel, Stainless Steel 304/316, Copper, Titanium

Conclusion

A steam condenser plays a decisive role in improving energy efficiency, reducing operating costs, and ensuring the reliable operation of steam turbine systems. With the growing demand for energy saving and environmental protection, shell and tube condensers with advanced materials and optimized designs are increasingly applied in power generation and industrial processes worldwide.

If you are looking for a reliable condenser supplier, BOOYO offers high-quality, customized solutions for power plant condensers, industrial steam condensers, and process condensers to meet your specific needs.
