1. What Is a Helical Baffle Heat Exchanger?

A Helical Baffle Heat Exchanger utilizes a series of inclined or curved baffle plates arranged in a spiral pattern around the tube bundle.
Unlike segmental baffles that create abrupt flow direction changes, the helical baffle forms a continuous helical channel, enabling the shell-side fluid to flow smoothly along a spiral path.

A typical helical baffle exchanger includes:

• Tube bundle

• Continuous spiral baffles (ruled-surface design)

• Shell

• Inlet/outlet nozzles

• Support structure

The unique geometry of the helical baffle eliminates dead zones, reduces flow-induced vibration, and significantly enhances thermal performance.

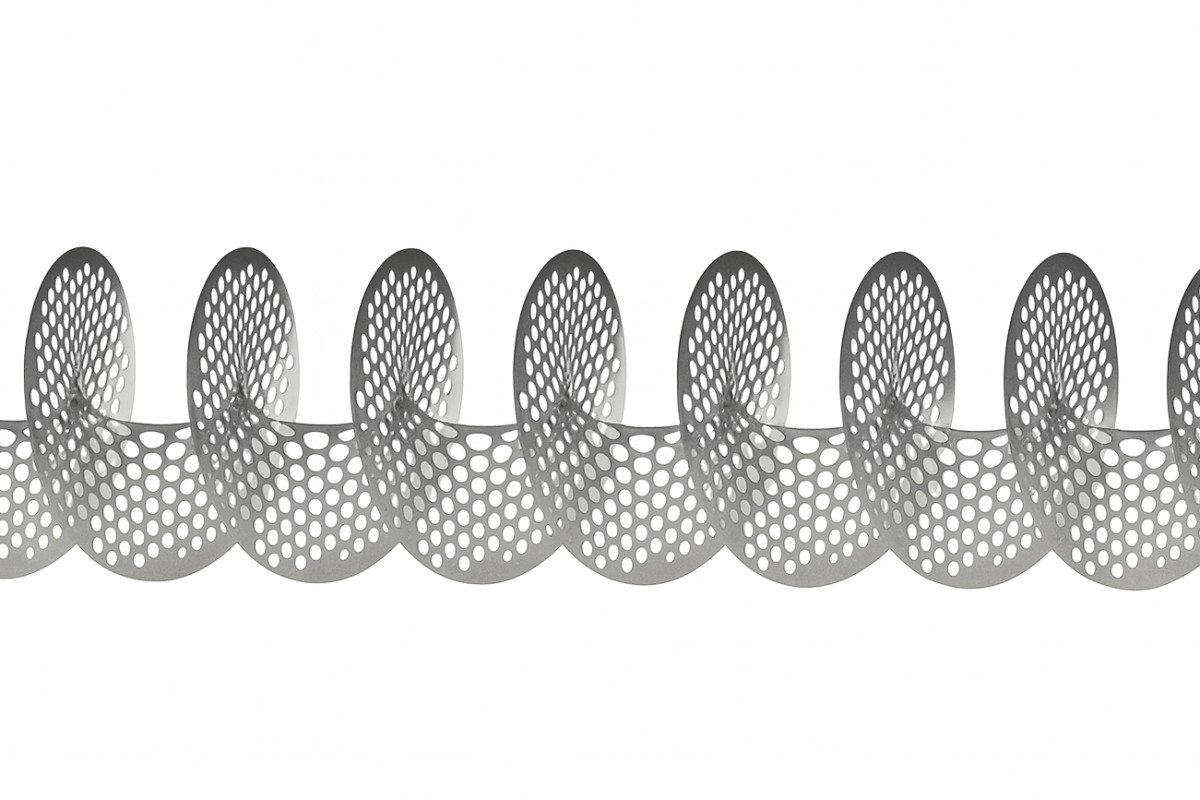

2. Ruled-Surface Helical Baffle: Geometry and Design Features

Modern high-end helical baffles often use a ruled-surface design, which provides superior flow uniformity and manufacturing accuracy. Key geometric characteristics include:

2.1 Continuous, single-piece structure

The baffle is formed from the center to the outer diameter as one continuous surface, without joints or segmentation. This ensures:

• Smooth fluid flow

• Lower turbulence losses

• Higher structural strength

2.2 Constant-thickness curved surface

The entire curve maintains equal thickness, minimizing stress concentration and improving reliability.

2.3 Accurate tube-hole projection

Even in regions with steep flow angles near the center, tube-hole projections remain circular, ensuring high-precision tube-sheet alignment.

2.4 True spiral flow path

Unlike “multi-piece pseudo-spiral baffles,” the ruled-surface design achieves a continuous, real helical flow channel, ensuring the intended performance.

3. Working Principle: How the Helical Flow Improves Heat Transfer

The key principle lies in guiding the shell-side fluid along a helical path, which introduces:

3.1 Stable and uniform crossflow

Compared with segmental baffles that create repeated impingement zones, the helical path provides a smooth and stable sweeping action across the tubes.

3.2 Lower pressure drop

The absence of abrupt flow turns reduces flow resistance by 20–50%, allowing for:

• Smaller pump power

• Higher system energy efficiency

• Capability for higher flow rates

3.3 Lower fouling rate

The continuous sweeping fluid motion disrupts the formation of stagnant zones, reducing fouling tendencies by up to 60% in many industrial cases.

3.4 Lower vibration risk

Elimination of vortex shedding significantly reduces tube vibration and mechanical fatigue.

3.5 Higher heat-transfer coefficient

Depending on operating conditions, heat-transfer performance improves by 10–35% compared to segmental-baffle designs.

4. Manufacturing Approaches: Why True Helical Baffles Matter

Several helical baffle design variations exist in the market, but performance depends heavily on manufacturing accuracy.

4.1 Ideal design: One-piece ruled-surface baffle

Advantages:

• Zero discontinuities

• Most stable fluid flow

• Easiest to clean

• Highest heat-transfer performance

4.2 Multi-piece “fake spiral” structure

Disadvantages:

• Incomplete flow continuity

• Increased fluid bypassing

• Lower heat-transfer efficiency

• Higher fouling risk

4.3 Center-pipe support designs

Disadvantages:

• Lost tube area (reduced heat-transfer surface)

• Altered load transfer to the tube sheet

• Lower thermal efficiency

Conclusion: For industrial and high-performance applications, the single-piece ruled-surface helical baffle provides the best results.

5. Key Advantages of Helical Baffle Heat Exchangers

5.1 Reduced pressure drop

With smooth helical channels, pressure loss is significantly lower than segmental-baffle types, enabling lower pumping costs.

5.2 Increased heat-transfer efficiency

More uniform crossflow and reduced dead zones increase overall heat-transfer coefficients.

5.3 Strong anti-fouling performance

Helical motion minimizes particle deposition, improving long-term stability and service life.

5.4 Lower vibration and noise

Stable flow reduces the risk of shell-side flow-induced vibration.

5.5 Easy maintenance

Absence of stagnant areas and cleaner flow paths simplify routine cleaning.

5.6 Compact and efficient

Higher performance allows for:

• Smaller equipment size

• Higher throughput

• Greater operating flexibility

6. Industrial Applications

Helical baffle heat exchangers are widely used in:

Oil & Gas

• Crude oil heating

• Stabilizer reboilers

• Gas sweetening systems (amine units)

• Refinery heat recovery

• Slug catcher cooling systems

Chemical & Petrochemical

• Condensers

• Reboilers

• Solvent coolers

• Polymer processing systems

• Aromatics plants

Energy & Power

• Waste heat recovery

• Flue gas heat exchange

• Turbine extraction cooling

Metallurgy & Coal Chemical

• Coke oven gas cooling

• Primary gas coolers

• Tar condensing systems

General Industrial Heating/Cooling

• Water–oil systems

• Batch processing cooling

• Jacketed reactor integration

The combination of low pressure drop and high heat-transfer efficiency makes helical baffle exchangers especially attractive in retrofit projects where improving energy efficiency is critical.

7. Why Choose a Helical Baffle Heat Exchanger from a Professional Manufacturer?

Although many manufacturers produce heat exchangers, crafting true, high-quality helical baffle exchangers requires:

• Advanced CNC cutting and forming

• Precision welding

• Accurate tube-hole projection

• High-quality materials (e.g., stainless steel, alloy steel)

• ASME / GB150 / TEMA-compliant design

• Strong engineering experience

Manufacturers capable of producing continuous ruled-surface helical baffles can deliver significantly better performance and reliability compared with low-end, multi-piece designs.

8. Conclusion

The Helical Baffle Heat Exchanger represents a major advancement in the design of shell-and-tube equipment. With superior pressure-drop performance, higher heat-transfer efficiency, strong anti-fouling capability, and excellent vibration resistance, it offers significant benefits across a wide range of industrial applications.

As industries increasingly demand better energy efficiency and long-term reliability, the adoption of helical baffle technology continues to accelerate.

If your operation requires high-performance heat exchange, stable operation, and lower operating costs, the helical baffle heat exchanger is a proven and robust solution.
