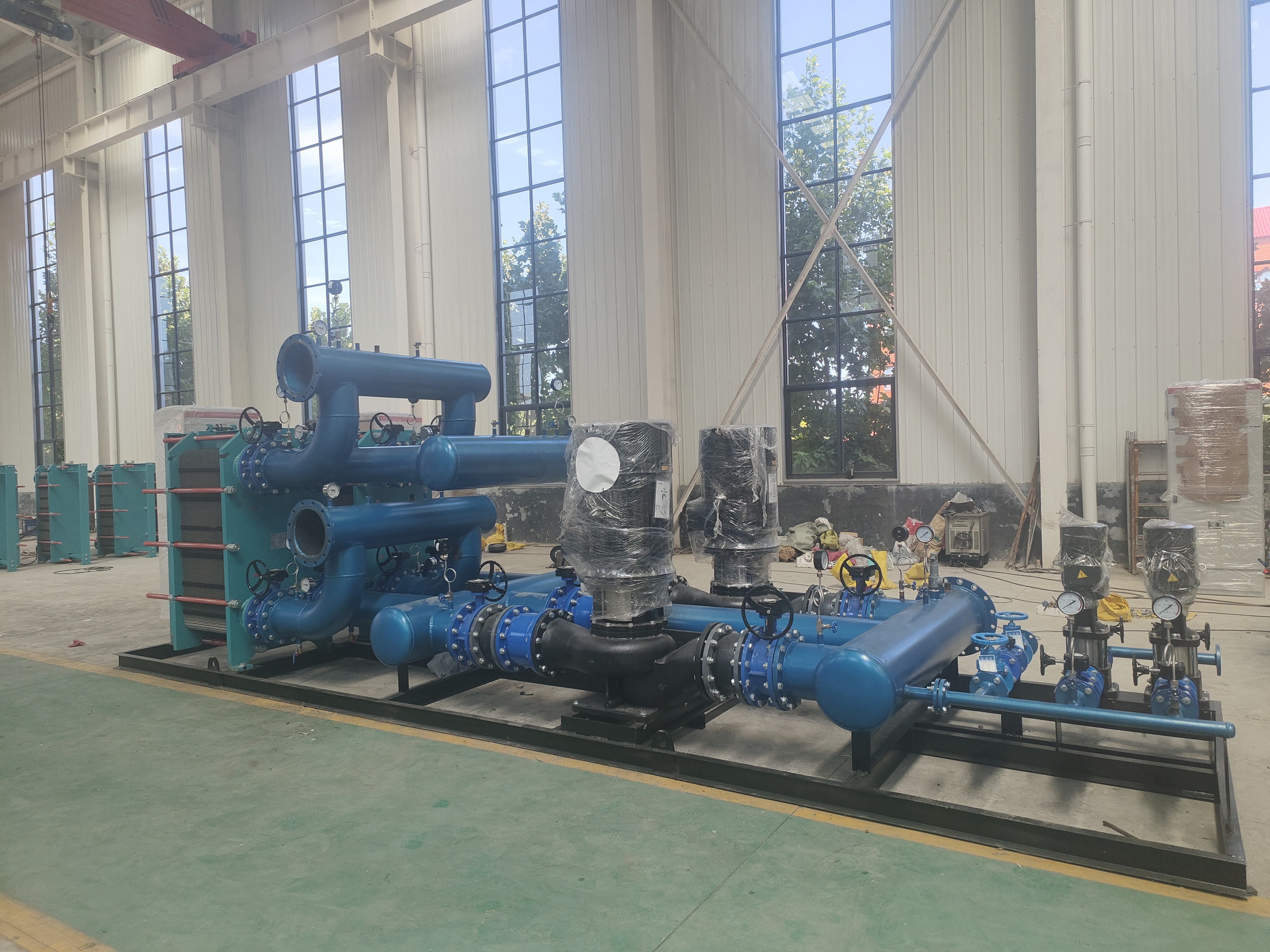

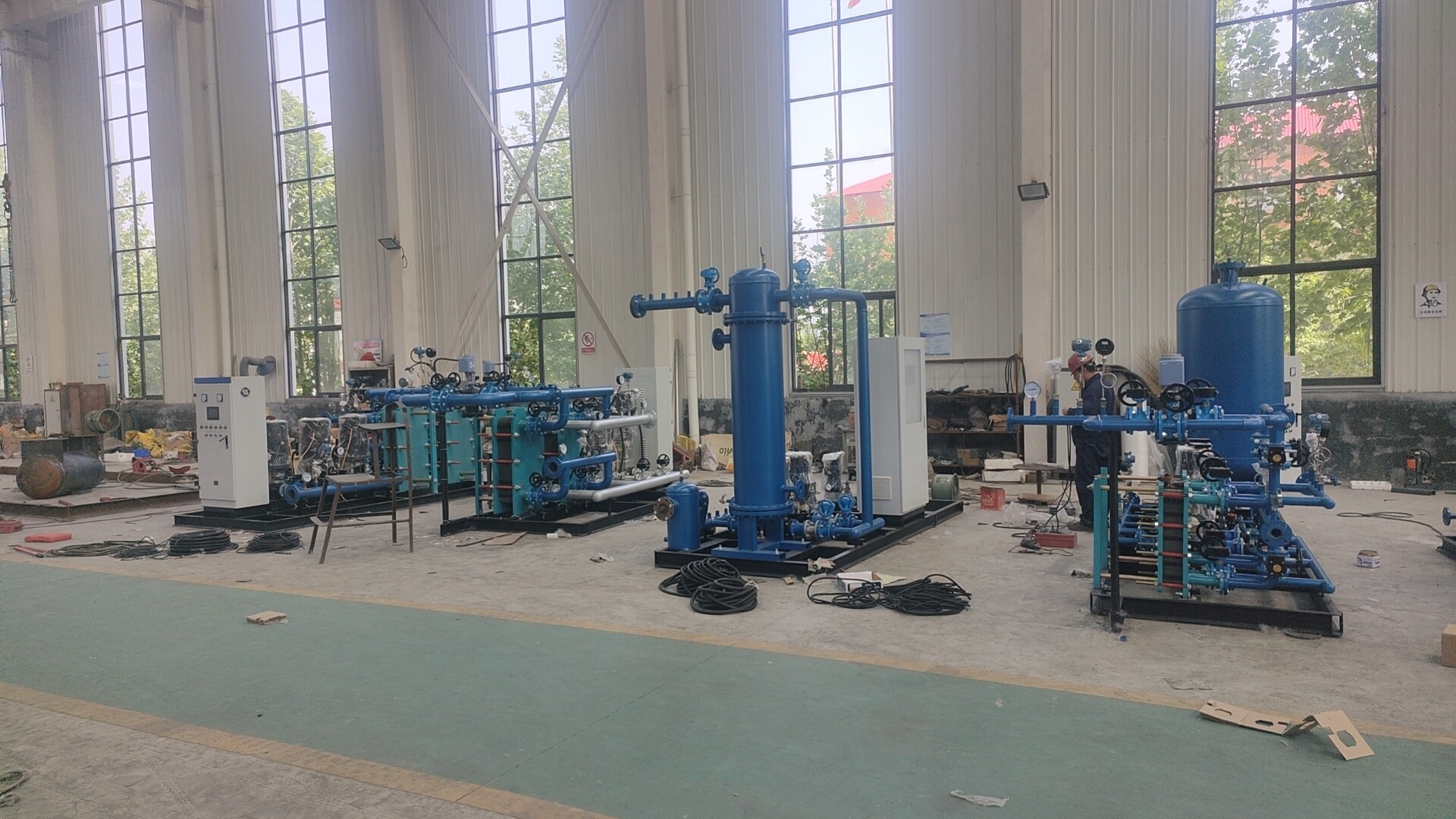

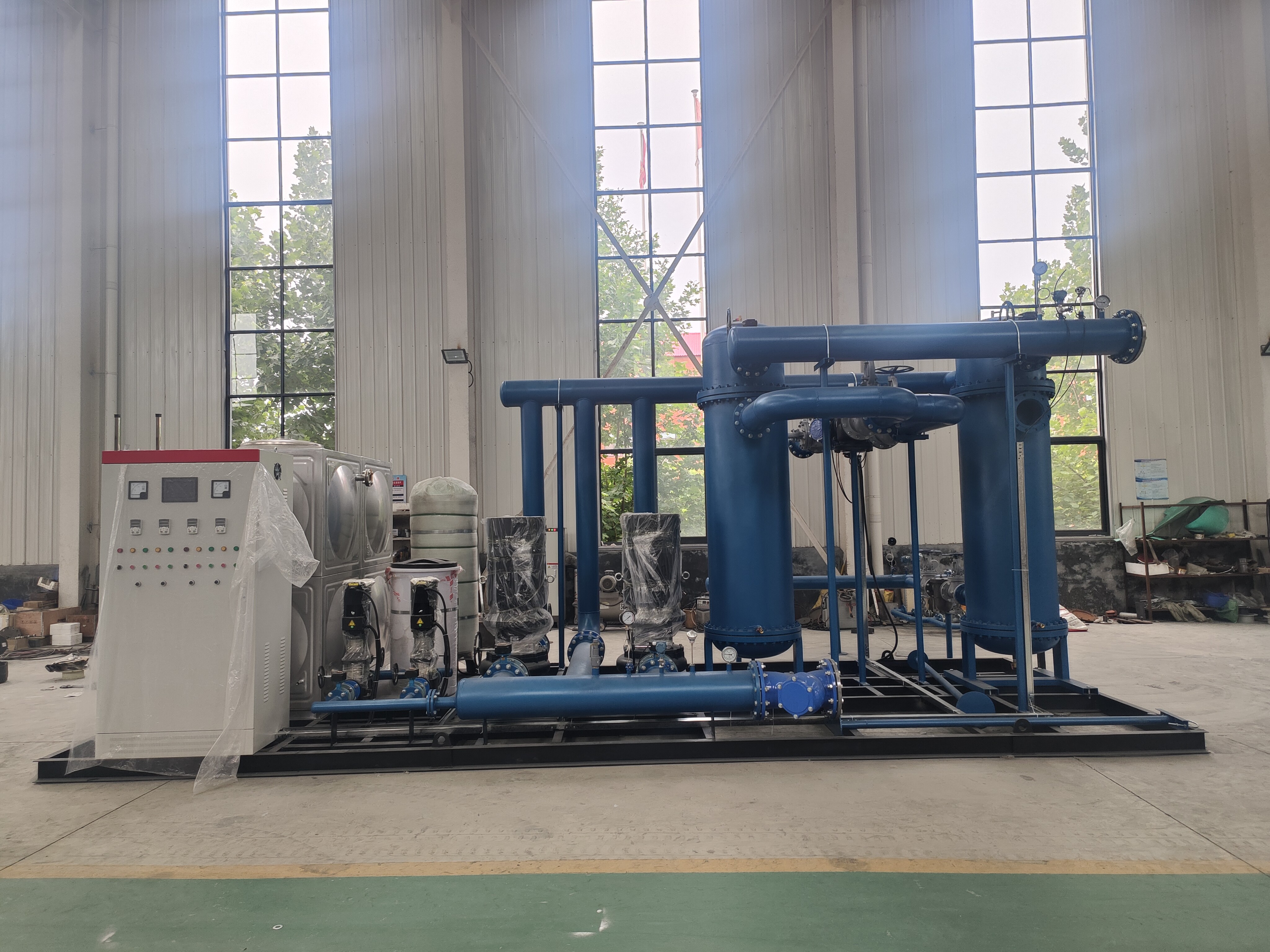

BOOYO Industry's heat exchange skid units are highly integrated and modular thermal exchange systems, designed for efficient, safe, and automated heat transfer in industrial and municipal applications. These systems are widely used in district heating, industrial hot water, HVAC systems, and energy centers.

Each unit combines a high-efficiency heat exchanger, circulating pump, pressure control system, and intelligent control panel into a compact, pre-assembled skid, ensuring minimal on-site work and maximum operational reliability.

BOOYO products are fully compliant with both Chinese GB Standards and ASME Codes, making them suitable for both domestic and export markets.

Key Components

1. High-Efficiency Heat Exchanger

• Available in plate type or shell-and-tube type

• Materials include 304/316L stainless steel, carbon steel, and titanium

• Compact design, easy maintenance, and excellent heat transfer performance

2. Circulation Pump System

• Dual-pump or frequency-controlled circulation pumps

• Pipeline materials: seamless steel or stainless steel

• Includes control valves, check valves, and butterfly valves

3. Pressure Control & Water Replenishment

• Equipped with expansion tank, safety valves, electric contact pressure gauges

• Stable pressure management and automatic water refill

4. Electrical & Automation System

• PLC or digital controller-based control cabinet

• Functions: auto start/stop, temperature differential control, alarm protection

• Communication protocols: RS485, Modbus; supports BAS integration

Standards & Compliance

BOOYO heat exchange skid units are manufactured and tested in strict accordance with:

Chinese GB Standards

• GB/T 151-2014: Shell-and-Tube Heat Exchanger

• GB 50242-2020: Construction Quality Acceptance for Water Supply and Heating

• GB/T 17241: Pipeline Flanges and Valves

• GB/T 12145: Industrial Cooling Water Quality Standards

ASME International Standards

• ASME Section VIII Div.1: Pressure Vessel Design

• ASME B31.1 / B31.3: Pressure Piping Design

• Support for U / U2 Stamping and Export Documentation

Upon request, we provide: bilingual technical documents, MTCs, pressure test reports, ASME drawings, and third-party inspection certificates (e.g., TÜV, BV, LR).

Product Advantages

Application Scenarios

BOOYO heat exchanger packages are ideal for:

• District heating secondary networks

• Industrial hot water supply systems

• HVAC thermal exchange stations

• Hospitals, schools, commercial buildings, and data centers

• Petrochemical, power plant, paper mill, and metallurgy processes

Service & Guarantee

BOOYO Industry offers complete lifecycle support for each unit:

• 100% NDT for all welded pipelines (RT, MT, or PT)

• Hydrostatic & air-tightness pressure testing

• Functional testing of control systems before shipment

• Full technical documentation (English or bilingual upon request)

Additional services include:

• Custom technical design & model selection

• On-site installation and commissioning

• Long-term spare parts supply & maintenance contracts
