Custom Boiler Economizer Coil Manufacturer

An economizer coil is one of the key heat recovery components in industrial boiler systems. It is designed to recover residual heat from flue gas and transfer the heat to boiler feedwater before the water enters the main evaporation section. By increasing feedwater temperature, an economizer coil helps improve boiler thermal efficiency, reduce fuel consumption, and support stable long-term operation.

Boyu Industry manufactures customized boiler economizer coils for industrial boilers, waste heat recovery boilers, power plant boilers, HRSG systems, cement kiln waste heat recovery systems, chemical plant boilers, biomass boilers, and other heat recovery applications.

With strong fabrication capability, experienced welding teams, and strict quality control procedures, we provide reliable economizer coil solutions for both new boiler projects and replacement projects.

What Is an Economizer Coil?

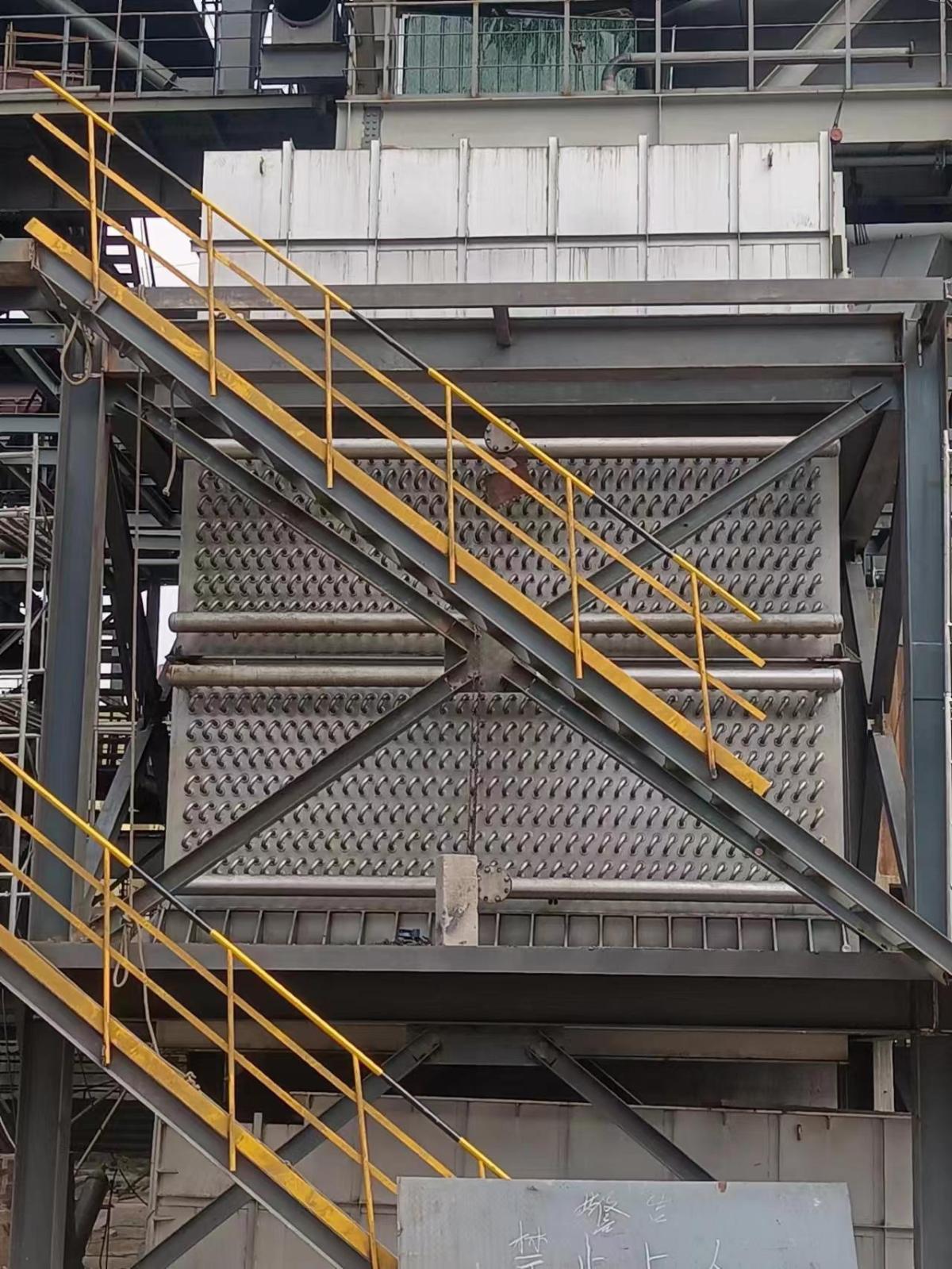

An economizer coil is usually installed in the flue gas passage of a boiler. Feedwater flows inside the tubes, while high-temperature flue gas passes outside the tubes. Heat is transferred from the flue gas to the feedwater through the tube wall.

This process allows the boiler to use waste heat that would otherwise be discharged through the stack. As a result, the boiler system can achieve better energy efficiency and lower operating costs.

In many boiler systems, economizer coils are manufactured as serpentine tube coils, tube bundles, or finned tube assemblies according to the design requirements of the project.

Main Types of Economizer Coils

Bare Tube Economizer Coil

Bare tube economizer coils are commonly used in working conditions with high dust content, ash, corrosive flue gas, or frequent cleaning requirements. The structure is simple, reliable, and suitable for harsh industrial environments.

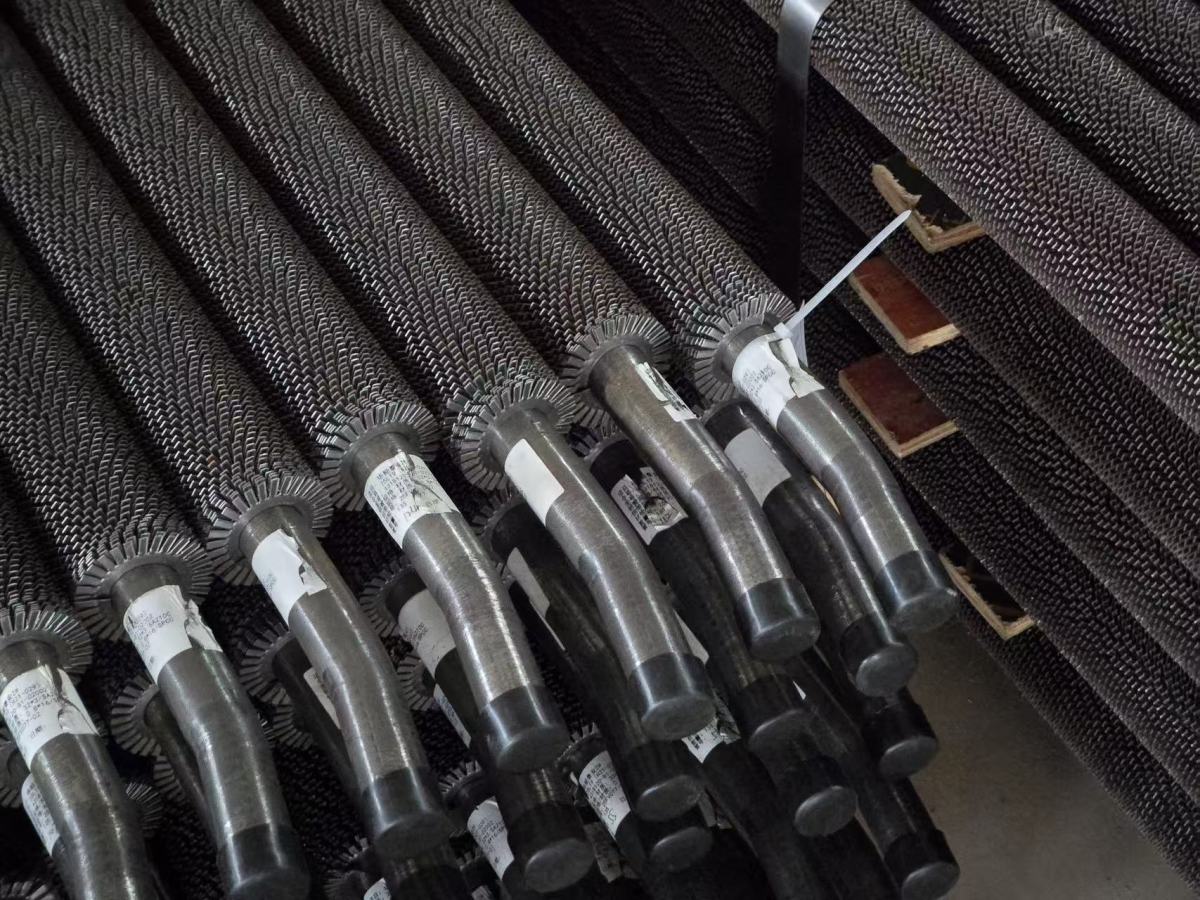

Finned Tube Economizer Coil

Finned tube economizer coils are designed to increase the heat transfer surface area. They are suitable for applications where compact structure and higher heat transfer efficiency are required.

Common finned tube types include spiral finned tubes, H-type finned tubes, and welded finned tubes. The fin structure should be selected according to flue gas conditions, fouling tendency, and cleaning method.

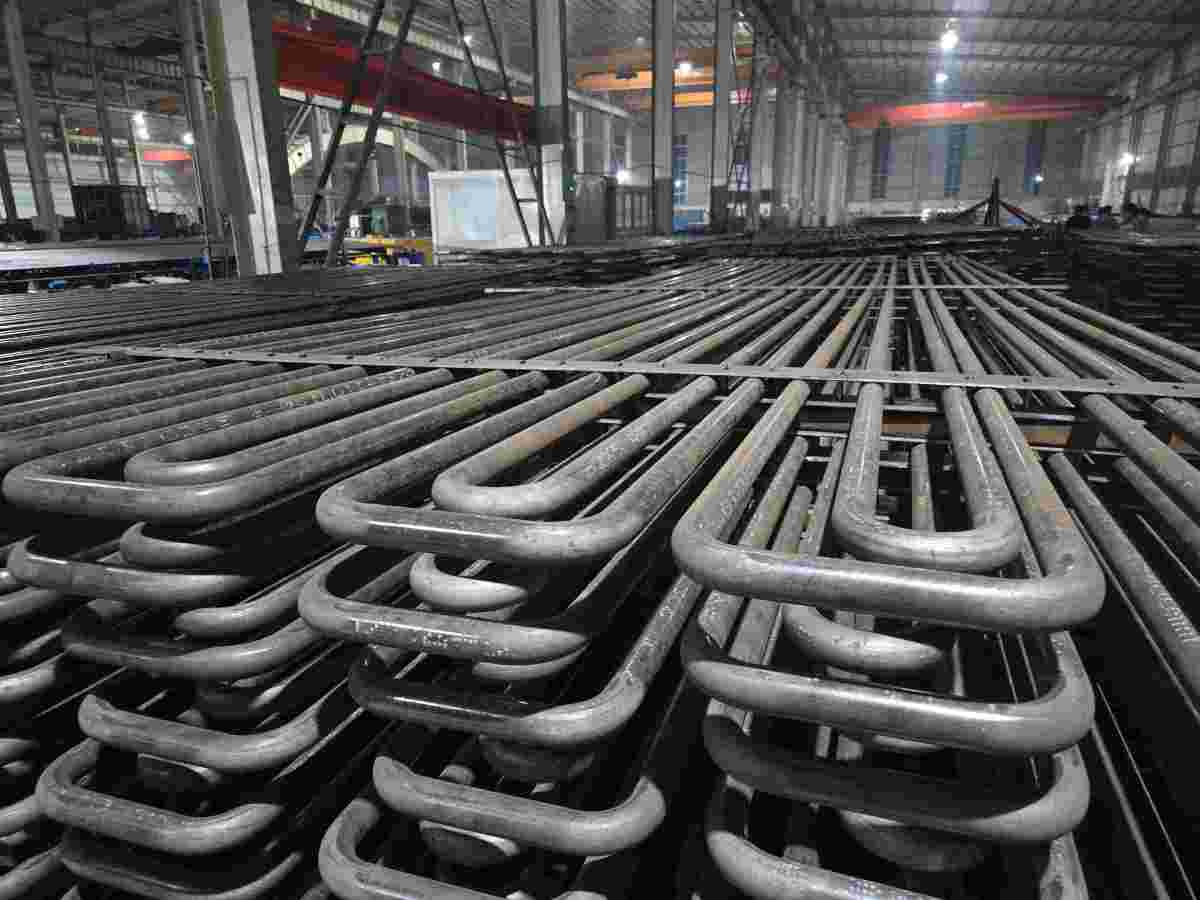

Serpentine Economizer Coil

A serpentine economizer coil is made by bending tubes into continuous coil sections. This structure is widely used in boiler heating surfaces because it allows compact arrangement, stable flow distribution, and efficient heat transfer.

Applications of Boiler Economizer Coils

Boyu Industry supplies economizer coils for a wide range of industrial applications, including:

• Power plant boilers

• Industrial steam boilers

• Waste heat recovery boilers

• HRSG systems

• CFB boilers

• Biomass boilers

• Cement kiln waste heat boilers

• Chemical plant boilers

• Coking industry waste heat recovery systems

• Boiler retrofit and replacement projects

For boiler users, replacing damaged or inefficient economizer coils is often a practical way to restore heat recovery performance without replacing the entire boiler system.

Common Materials for Economizer Coils

The material of an economizer coil should be selected according to design pressure, design temperature, medium, corrosion risk, and applicable standards.

Common materials include:

• ASME SA-192 seamless carbon steel boiler tubes

• ASME SA-210 Grade A1 / Grade C boiler and superheater tubes

• ASME SA-213 T11, T22, T91 alloy steel tubes

• GB/T 3087 low and medium pressure boiler tubes

• GB/T 5310 high pressure boiler tubes

• 20G, 15CrMoG, 12Cr1MoVG and other boiler tube materials

For export projects, we can manufacture economizer coils according to ASME, EN, GB, or project-specific technical requirements.

Manufacturing Capabilities

A high-quality boiler economizer coil requires accurate tube bending, reliable welding, dimensional control, and strict inspection.

Our manufacturing process can include:

• Tube cutting and beveling

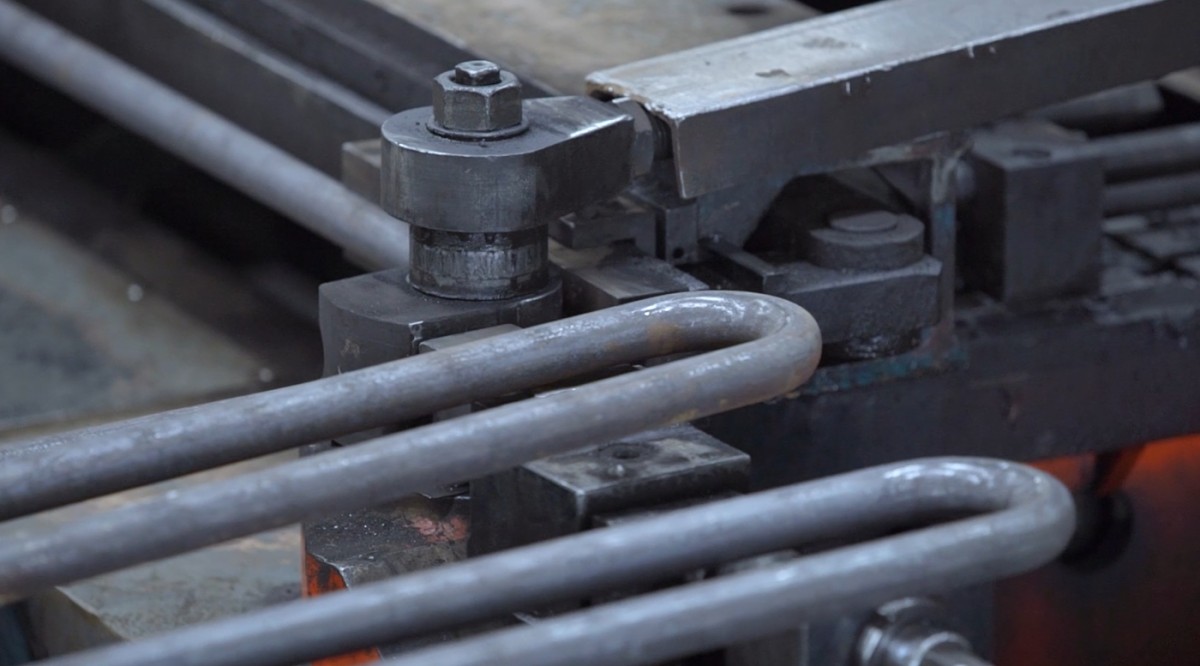

• Tube bending

• Serpentine coil forming

• Header fabrication

• Fin tube manufacturing

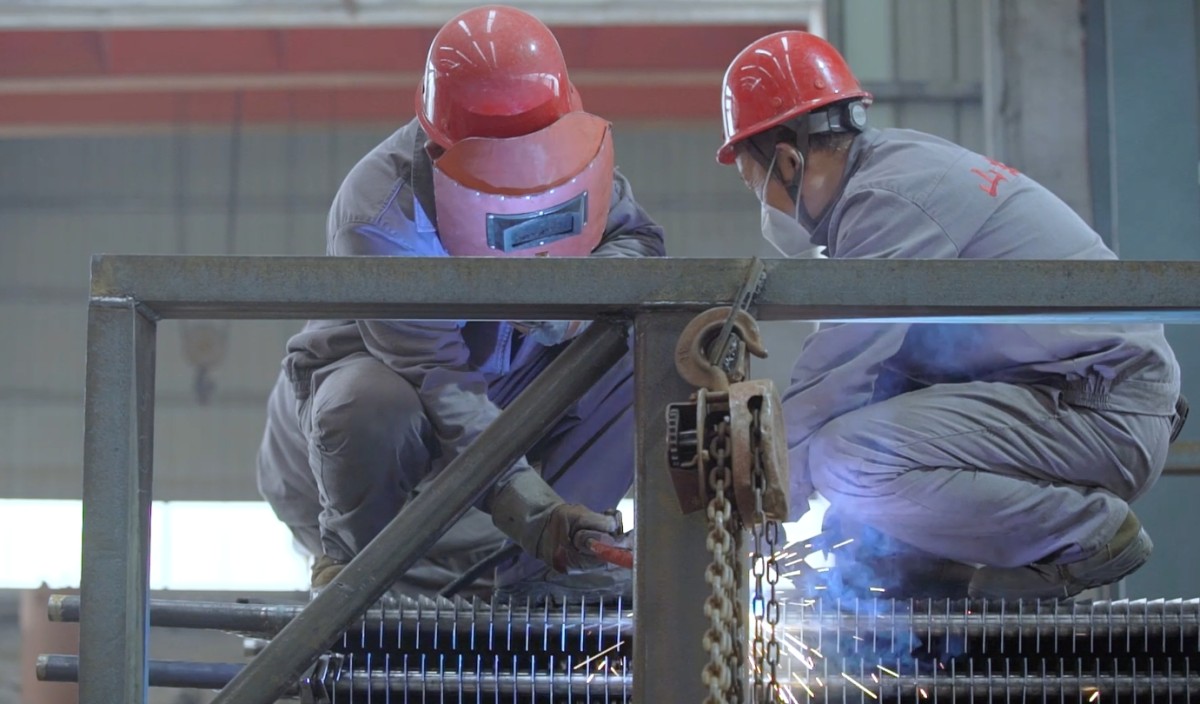

• Tube-to-header welding

• Assembly welding

• Dimensional inspection

• Hydraulic test

• Non-destructive testing

• Surface treatment

• Export packaging

For replacement projects, we can manufacture economizer coils according to original drawings, samples, site measurement data, or technical specifications provided by the customer.

Quality Control and Inspection

As a boiler pressure part, an economizer coil must meet strict quality requirements. Boyu Industry follows project specifications and applicable standards during material procurement, fabrication, welding, inspection, and delivery.

Typical quality control items include:

• Material certificate review

• Welding procedure control

• Welder qualification control

• Visual inspection

• Dimensional inspection

• Hydraulic pressure test

• Radiographic testing when required

• Ultrasonic testing when required

• Surface and packaging inspection

• Final documentation review

For international projects, inspection documents, material certificates, welding records, test reports, and other quality documents can be provided according to customer requirements.

Economizer Coil Replacement

After long-term operation, economizer coils may suffer from corrosion, erosion, ash deposition, leakage, tube thinning, or reduced heat transfer efficiency. These problems can increase flue gas outlet temperature, reduce boiler efficiency, and cause unplanned shutdowns.

Common signs that an economizer coil may need replacement include:

• Tube leakage

• Increased boiler fuel consumption

• Higher flue gas outlet temperature

• Serious fouling or ash accumulation

• Corrosion or erosion on tube surfaces

• Wall thickness reduction

• Frequent maintenance requirements

• Reduced feedwater heating performance

A properly designed replacement economizer coil can help restore boiler performance, reduce maintenance risk, and improve heat recovery efficiency.

Custom Economizer Coil Solutions from Boyu Industry

Boyu Industry provides customized economizer coil solutions based on customer drawings, boiler parameters, operating conditions, and project requirements.

Our supply scope includes:

• Boiler economizer coils

• Bare tube economizer coils

• Finned tube economizer coils

• Spiral finned tube economizer coils

• H-type finned tube economizer coils

• Serpentine economizer coils

• Economizer tube bundles

• Boiler tube coils

• Boiler heating surface components

• Boiler pressure parts

Whether the project is for a new boiler system, a boiler retrofit, or replacement of existing pressure parts, we can provide suitable manufacturing support and technical coordination.

Information Required for Quotation

To provide an accurate quotation for an economizer coil, customers are encouraged to provide the following information:

• General arrangement drawing

• Tube material

• Tube outside diameter and wall thickness

• Tube quantity

• Coil dimensions

• Header size and material

• Design pressure

• Design temperature

• Working medium

• Flue gas conditions

• Applicable standard

• Inspection requirements

• Required delivery time

• Packaging and transportation requirements

If drawings are not available, our team can also discuss the project based on photos, samples, site measurements, or operating parameters.

Why Choose Boyu Industry?

Boyu Industry focuses on the manufacturing of heat exchange equipment, boiler pressure parts, and industrial heat recovery components. With strong production capacity and engineering experience, we support customers in power generation, coking, cement, chemical, waste heat recovery, and other industrial fields.

Our advantages include:

• Customized manufacturing according to project drawings

• Experience in boiler heat exchange components

• Strong tube bending and welding capability

• Strict material and quality control

• Support for ASME and international project requirements

• Reliable export packaging

• Flexible solutions for replacement and retrofit projects

Contact Us

If you are looking for a reliable economizer coil manufacturer for industrial boilers, waste heat recovery boilers, or boiler pressure part replacement projects, Boyu Industry can provide customized solutions according to your technical requirements.

Contact us to discuss your economizer coil project and receive a technical quotation.
