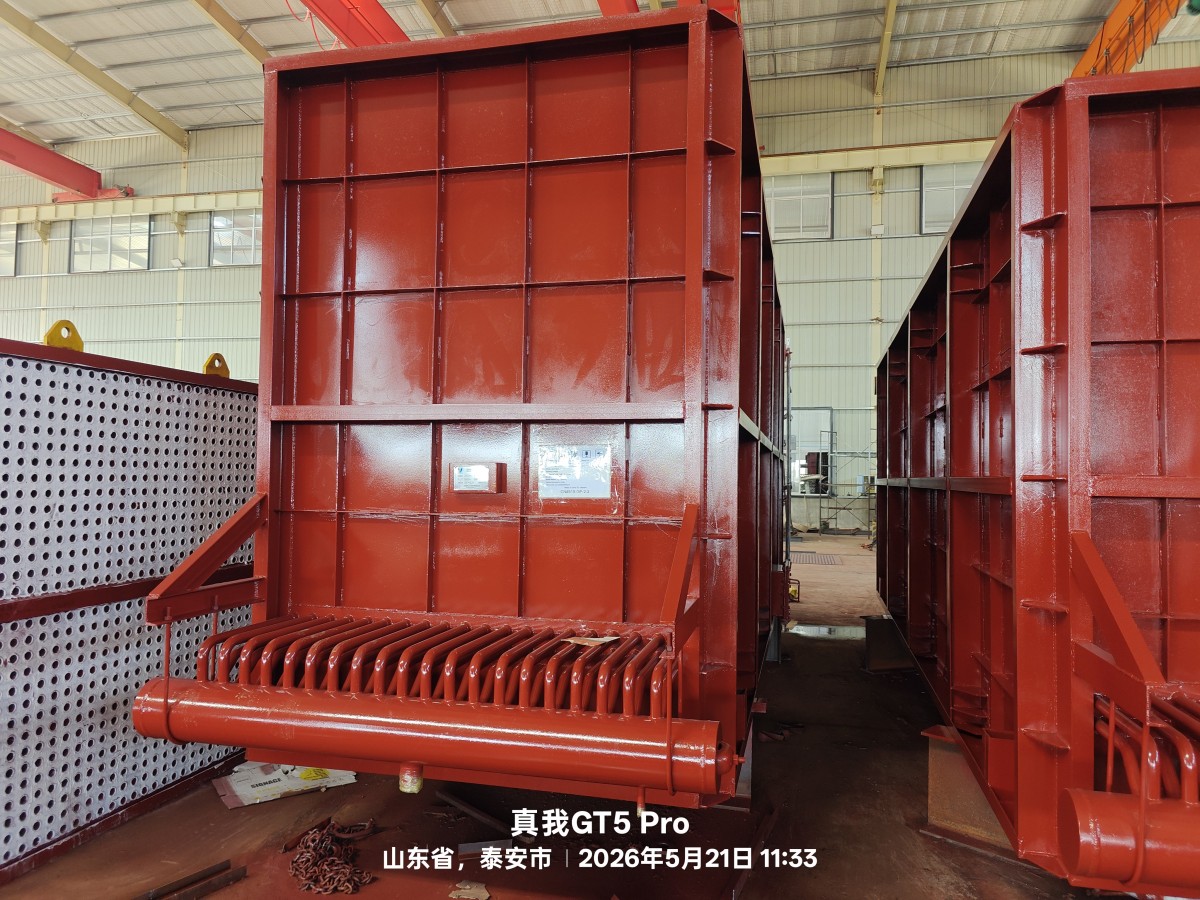

A boiler economizer tube bank is an important heat recovery component used in industrial boilers, waste heat boilers and flue gas heat recovery systems. It is usually installed in the low-temperature flue gas section of the boiler to recover residual heat from exhaust gas and preheat boiler feedwater.

In boiler maintenance and retrofit projects, the economizer tube bank is often replaced as a pre-fabricated assembly. Compared with supplying loose tubes only, a shop-assembled economizer tube bank can reduce site welding work, shorten boiler shutdown time and improve installation efficiency.

Boyu Industry manufactures customized boiler economizer tube banks, evaporator tube bank assemblies and other boiler spare parts according to customer drawings and project requirements.

What Is a Boiler Economizer Tube Bank?

A boiler economizer tube bank is a group of tubes arranged in the economizer section of a boiler. Its main function is to absorb heat from flue gas and transfer it to boiler feedwater before the water enters the drum or evaporation system.

By recovering waste heat from exhaust gas, the economizer helps improve boiler thermal efficiency and reduce fuel consumption.

A typical economizer tube bank assembly may include:

• Straight or U-shaped boiler tubes
• Tube bends
• Tube rows
• Connecting tubes
• Welding joints
• Clamp-type supports
• Spacers and brackets
• Furnace wall sleeves or installation interfaces
• Pressure test and delivery documents

For replacement projects, the new economizer tube bank must match the original boiler layout. Tube pitch, bending shape, support position and interface dimensions should be carefully checked before fabrication.

Why Economizer Tube Banks Need Replacement

The economizer operates in a harsh working environment. It is exposed to flue gas, ash, sulfur compounds, temperature fluctuation and possible dew point corrosion. After long-term operation, the tube bank may suffer from leakage, corrosion, ash blocking or heat transfer degradation.

Common reasons for replacement include:

1. Tube Leakage

Tube leakage is one of the most common reasons for economizer replacement. Leakage may be caused by corrosion, erosion, thermal fatigue, poor water quality or welding defects.

If leakage happens repeatedly, partial repair may no longer be economical. Replacing the full economizer tube bank may be safer and more reliable.

2. Low-Temperature Dew Point Corrosion

In flue gas containing sulfur compounds, sulfuric acid dew point corrosion may occur when the tube wall temperature is below the acid dew point. This is especially common in low-temperature heat recovery areas.

For this type of working condition, corrosion-resistant materials such as ND steel 09CrCuSb are often selected.

3. Ash Deposition and Fouling

Ash deposition on tube surfaces reduces heat transfer efficiency and increases flue gas resistance. If cleaning cannot restore the original performance, replacement may be necessary.

4. Boiler Retrofit or Capacity Upgrade

When the boiler system is upgraded or modified, the original economizer may need to be redesigned. A new tube bank can be fabricated according to updated operating parameters and installation conditions.

5. Overseas Spare Parts Replacement

For overseas maintenance projects, customers often prefer pre-fabricated tube bank assemblies. This reduces site fabrication work and makes installation easier for local teams.

Key Design Factors for Economizer Tube Bank Replacement

A replacement economizer tube bank is usually customized according to the original equipment drawing. Before manufacturing, the following design factors should be confirmed.

Tube Diameter and Wall Thickness

Tube size directly affects heat transfer area, pressure drop, mechanical strength and installation compatibility.

Common parameters include:

• Tube outside diameter
• Tube wall thickness
• Tube length
• Bend radius
• Tube pitch
• Number of tube rows
• Number of tube pairs
• Total heat transfer area

For example, in a recent Vietnam boiler spare parts project, Boyu supplied economizer tube bank assemblies using ND steel 09CrCuSb tubes. The project included economizer assemblies with OD38 × 4 mm tubes and OD32 × 4 mm tubes, which were required to be bent into U shape, welded and assembled before delivery.

Tube Arrangement

Tube arrangement must match the original boiler structure. Even a small dimensional deviation may cause installation interference at site.

Common tube arrangements include:

• Straight tube arrangement
• U-shaped tube arrangement
• Inline tube layout
• Staggered tube layout
• Multi-row tube bank structure

For replacement work, the original drawing is very important. If the original drawing is not available, site measurement, photos and sample parts may be needed.

Support Structure

The economizer tube bank needs a proper support system to prevent vibration, deformation and transportation damage.

Support components may include:

• Clamp-type supports
• Tube clips
• Spacers
• Brackets
• Fixing plates
• Furnace wall sleeves

In the Vietnam project, the economizer tube bank assemblies were required to include clamp-type supports and to be pre-assembled with furnace wall pre-welded sleeves.

Welding and Assembly

Economizer tube bank fabrication usually involves tube cutting, bending, positioning, welding, support installation and dimensional inspection.

Compared with field welding, workshop fabrication provides better control over:

• Welding quality
• Assembly accuracy
• Tube spacing
• Support position
• Dimensional tolerance
• Pressure test preparation
• Delivery documentation

For overseas projects, shop assembly can significantly reduce site workload.

Material Selection for Boiler Economizer Tube Banks

Material selection is critical because the economizer is often located in the low-temperature flue gas zone. Different fuels and flue gas compositions require different material solutions.

Common material options include:

ND Steel 09CrCuSb for Economizer Tube Banks

ND steel, also known as 09CrCuSb steel, is widely used in China for boiler economizers, air preheaters and low-temperature flue gas heat recovery equipment. It is commonly selected for working conditions where sulfuric acid dew point corrosion may occur.

Compared with ordinary carbon steel, ND steel has better resistance to low-temperature sulfuric acid corrosion. It is suitable for:

• Boiler economizer tube banks
• Low-temperature economizers
• Air preheaters
• Waste heat recovery boilers
• Flue gas heat recovery systems
• Boiler spare parts exposed to sulfur-containing flue gas

In the Vietnam boiler spare parts project, the economizer tube bank assemblies were manufactured with ND steel 09CrCuSb, using U-shaped tube structures and shop assembly before delivery.

Advantages of Pre-Fabricated Economizer Tube Bank Assemblies

For boiler replacement projects, pre-fabricated tube bank assemblies have several advantages over loose tube supply.

Reduced Site Welding

Tube bending, welding and assembly are completed in the workshop. This reduces site welding workload and improves installation efficiency.

Shorter Boiler Shutdown Time

Boiler shutdown time is costly. A pre-fabricated economizer tube bank can be installed more quickly, helping customers reduce maintenance downtime.

Better Dimensional Control

Factory assembly allows the manufacturer to control tube pitch, bending shape, support location and overall dimensions before shipment.

Better Quality Inspection

Inspection can be carried out before delivery, including dimensional inspection, welding inspection, pressure test and document review.

Easier Overseas Installation

For export projects, pre-fabricated assemblies reduce the customer’s dependence on local fabrication resources and help avoid site installation risks.

Manufacturing Process of Economizer Tube Bank Assemblies

A typical economizer tube bank manufacturing process includes:

1. Drawing review and technical clarification
2. Material procurement and inspection
3. Tube cutting
4. Tube bending
5. Tube positioning and assembly
6. Welding
7. Support and sleeve pre-assembly
8. Dimensional inspection
9. Pressure test or required inspection
10. Surface treatment
11. Packing and delivery
12. Delivery of inspection documents

For boiler spare parts, dimensional accuracy is especially important. The replacement assembly must fit the original boiler structure, otherwise site installation may be delayed.

Quality Control and Delivery Documents

Quality control is important for boiler pressure parts and heat transfer components. Depending on customer requirements, the manufacturer may provide:

• Material certificates
• Product certificate
• Welding records
• Dimensional inspection report
• Pressure test report
• Packing list
• Installation guidance documents
• Other project-specific documents

In the Vietnam spare parts contract, the supplier was required to provide product pressure test reports and relevant delivery documents before delivery.

What Information Is Needed for Quotation?

To quote an economizer tube bank replacement accurately, the manufacturer needs complete technical information.

For replacement projects, photos of the existing economizer, site measurement records and previous maintenance records are also helpful.

Applications of Economizer Tube Bank Assemblies

Economizer tube bank assemblies are widely used in:

• Industrial boilers
• Waste heat boilers
• Power plant boilers
• Chemical plant boilers
• Coking waste heat recovery systems
• Cement plant waste heat recovery boilers
• Biomass boilers
• Flue gas heat recovery systems
• Boiler retrofit and maintenance projects

They are often supplied together with other boiler components, such as:

• Evaporator tube bank assemblies
• Superheater coils
• Reheater coils
• Air preheater tube bundles
• H-fin tube economizers
• Spiral finned tube economizers
• Boiler headers
• Connecting tubes

Boyu Industry: Customized Boiler Economizer Tube Bank Manufacturer

Boyu Industry manufactures customized boiler economizer tube banks and boiler spare parts according to customer drawings and project requirements. The company can provide tube bending, welding, assembly, support matching, inspection and export delivery services.

For overseas replacement projects, Boyu can manufacture pre-fabricated economizer tube bank assemblies based on confirmed drawings. This helps customers reduce site installation workload, shorten maintenance shutdown time and improve replacement reliability.

Whether the project involves ND steel economizer tube banks, U-shaped boiler tube assemblies, evaporator tube bank assemblies or other boiler pressure parts, Boyu can provide technical review and customized manufacturing support.

Conclusion

A boiler economizer tube bank is a key heat recovery component in industrial boiler systems. For replacement and maintenance projects, proper design, material selection and fabrication quality directly affect installation efficiency and long-term operation.

Compared with loose tube supply, pre-fabricated economizer tube bank assemblies can reduce site welding work, improve dimensional accuracy and shorten boiler shutdown time.

Boyu Industry supplies customized economizer tube bank assemblies, evaporator tube bank assemblies and other boiler spare parts for industrial boiler and waste heat recovery applications. Customers can send drawings, material requirements, tube specifications and delivery information for quotation and fabrication proposal.

FAQ

What is a boiler economizer tube bank?

A boiler economizer tube bank is a group of tubes installed in the economizer section of a boiler. It absorbs heat from flue gas and transfers it to boiler feedwater to improve boiler efficiency.

What material is used for economizer tube banks?

Material depends on operating conditions. Common materials include carbon steel, ND steel 09CrCuSb, stainless steel and alloy steel. ND steel is often used for low-temperature sulfuric acid dew point corrosion conditions.

Can economizer tube banks be customized according to drawings?

Yes. Economizer tube banks are usually customized according to customer drawings, including tube size, bending shape, tube arrangement, support structure and installation interface.

Why use pre-fabricated economizer tube bank assemblies?

Pre-fabricated assemblies reduce site welding, shorten boiler shutdown time, improve dimensional control and make overseas installation easier.

What information is needed for quotation?

Customers should provide drawings, material requirements, tube diameter, wall thickness, tube quantity, support details, inspection requirements and delivery destination.
