In industrial boiler systems, the evaporator tube box is an important boiler spare part used for heat transfer, water circulation and system replacement during maintenance or retrofit projects. For power plants, chemical plants, waste heat recovery systems and industrial boiler users, reliable tube box fabrication directly affects boiler operation stability, service life and maintenance cost.

Recently, Boyu Industry supplied evaporator tube box spare parts for a Vietnam project, including customized tube box assemblies manufactured according to confirmed drawings and project requirements. The supplied items included Deaeration Evaporator I Tube Box and Deaeration Evaporator II Tube Box, both using ND steel 09CrCuSb tubes with OD38 mm × 4 mm wall thickness.

What Is an Evaporator Tube Box?

An evaporator tube box is a pre-assembled boiler tube component designed to transfer heat from flue gas to water or steam-water mixture. It is commonly used in boiler evaporator sections, waste heat boilers, heat recovery systems and boiler retrofit projects.

Compared with loose tube supply, a fabricated tube box offers several advantages:

• Easier site installation
• Better dimensional consistency
• Reduced field welding workload
• Shorter maintenance shutdown time
• Improved replacement efficiency
• Better quality control before delivery

For overseas spare parts projects, especially when site installation time is limited, pre-assembled tube boxes can help customers reduce construction risks and improve replacement efficiency.

ND Steel 09CrCuSb for Boiler Tube Box Applications

For this Vietnam spare parts project, the evaporator tube boxes were made of ND steel 09CrCuSb. This material is widely used in boiler and heat recovery equipment where resistance to low-temperature dew point corrosion is required.

ND steel is commonly selected for equipment exposed to flue gas environments containing sulfur compounds. Compared with ordinary carbon steel, ND steel offers better resistance against sulfuric acid dew point corrosion, making it suitable for:

• Boiler economizers
• Evaporator tube sections
• Air preheaters
• Waste heat recovery boilers
• Flue gas heat recovery systems
• Industrial boiler replacement parts

For customers replacing old boiler components, material selection is one of the most important factors. Using proper corrosion-resistant material can extend the service life of the boiler spare parts and reduce future maintenance frequency.

Main Technical Features of the Supplied Evaporator Tube Box

According to the project requirements, the evaporator tube box assemblies were fabricated with the following features:

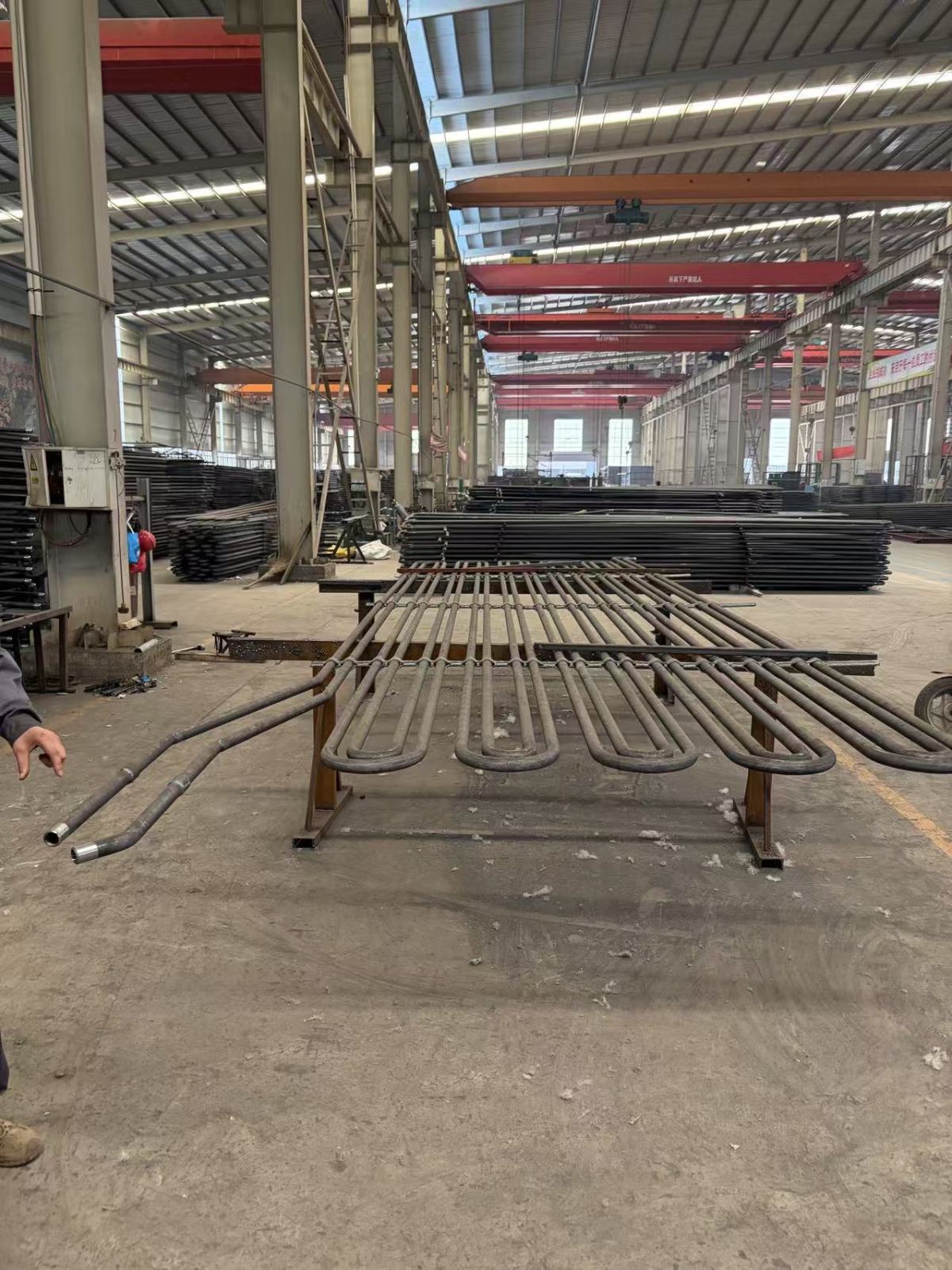

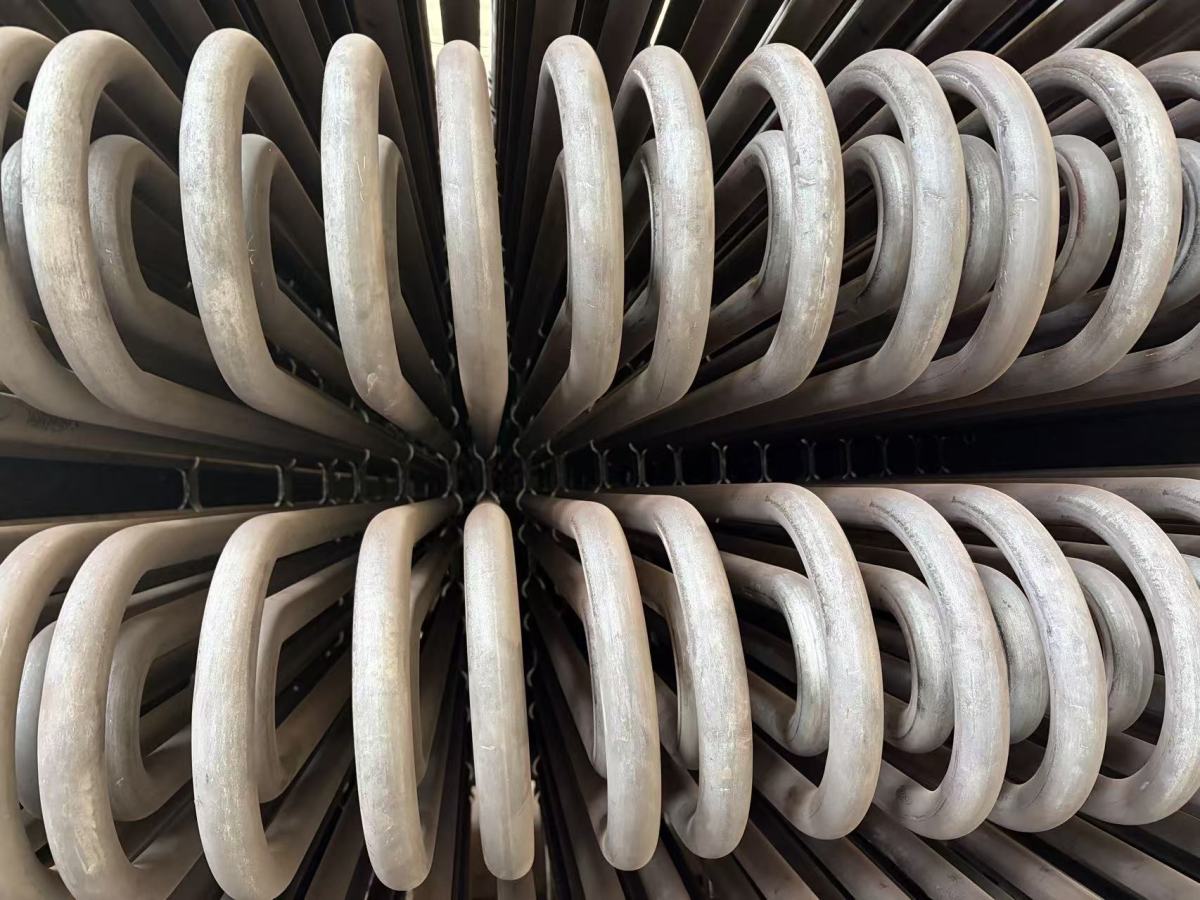

The contract also required the tube boxes to be bent into U shape, welded and assembled before delivery, with matching clamp-type supports and furnace wall pre-welded sleeves.

Why Pre-Assembled Tube Boxes Are Preferred for Boiler Spare Parts

For boiler spare parts exported overseas, pre-assembly is especially important. If only loose tubes are supplied, the customer may need more on-site cutting, bending, welding and alignment work. This increases site workload and may also create additional installation errors.

A pre-assembled evaporator tube box provides better control over:

1. Tube Bending Accuracy

The U-shaped tube structure must match the original boiler layout and installation position. Accurate bending reduces installation interference and improves replacement efficiency.

2. Welding Quality

Shop welding is usually more controllable than site welding. Welding parameters, inspection and dimensional checks can be performed under factory conditions.

3. Assembly Consistency

Tube spacing, support position and sleeve connection must follow the confirmed drawings. Proper assembly helps avoid installation deviation at site.

4. Transportation and Site Handling

For large boiler spare parts, proper structural assembly and packaging reduce the risk of deformation during long-distance transportation.

Applications of Evaporator Tube Box Assemblies

Boyu Industry can manufacture customized evaporator tube boxes and related boiler pressure parts for different industrial applications, including:

• Industrial boilers
• Waste heat boilers
• Power plant boilers
• Coking waste heat recovery systems
• Chemical plant boilers
• Cement plant waste heat recovery systems
• Flue gas heat recovery equipment
• Boiler retrofit and replacement projects

In addition to evaporator tube boxes, Boyu can also provide related boiler components such as:

• Economizer tube boxes
• Boiler feedwater deaerator tube boxes
• H-fin tube economizers
• Spiral finned tube economizers
• Air preheater tube bundles
• Boiler tube coils
• Superheater and reheater components

Manufacturing Capability for Customized Boiler Tube Boxes

As a boiler component and heat exchange equipment manufacturer, Boyu Industry provides customized fabrication based on customer drawings and technical requirements. For tube box spare parts, the typical manufacturing process includes:

1. Drawing review and technical confirmation
2. Material procurement and inspection
3. Tube cutting and bending
4. Tube assembly and positioning
5. Welding and dimensional inspection
6. Support and sleeve pre-assembly
7. Pressure test or required inspection
8. Packing and delivery

For the Vietnam project, the contract required product pressure test reports and relevant delivery documents before shipment.

Customized Manufacturing Based on Drawings

Every boiler system may have different tube arrangement, pitch, support structure, furnace wall interface and installation space. Therefore, evaporator tube boxes are usually customized according to project drawings instead of standard stock products.

Customers are recommended to provide the following information for quotation:

For replacement projects, photos of the existing boiler part and site measurement data are also helpful.

Boyu Industry: Boiler Tube Box Manufacturer in China

Boyu Industry manufactures customized heat exchange equipment, boiler components and pressure vessel parts for domestic and overseas customers. With experience in boiler spare parts, economizers, air preheaters and heat recovery equipment, Boyu can provide practical manufacturing solutions for boiler maintenance and retrofit projects.

The recent Vietnam spare parts project shows Boyu’s capability to supply customized boiler tube box assemblies based on confirmed drawings, including ND steel U-shaped tube fabrication, welding, support matching and pre-assembly before delivery.

For customers looking for evaporator tube box, economizer tube box, boiler spare parts, or ND steel boiler tube assemblies, Boyu can provide technical review, fabrication and export delivery support.

Conclusion

The evaporator tube box is a key boiler spare part for heat transfer and boiler replacement projects. For overseas boiler maintenance, a pre-assembled tube box can reduce site workload, improve installation efficiency and help customers shorten shutdown time.

Boyu Industry can manufacture customized evaporator tube boxes, economizer tube boxes and other boiler pressure parts according to customer drawings, material requirements and project conditions. For ND steel boiler spare parts, Boyu can provide tube bending, welding, assembly, inspection and export delivery service.

FAQ

What is an evaporator tube box?

An evaporator tube box is a boiler tube assembly used in the evaporator section of a boiler or waste heat recovery system. It helps transfer heat and supports steam-water circulation.

What material is commonly used for boiler evaporator tube boxes?

Materials depend on operating conditions. For flue gas environments with dew point corrosion risk, ND steel 09CrCuSb is commonly used because of its corrosion resistance.

Can Boyu manufacture tube boxes according to customer drawings?

Yes. Boyu can manufacture customized tube boxes according to confirmed drawings, including tube bending, welding, support assembly and inspection.

What information is needed for quotation?

Customers should provide drawings, material requirements, tube diameter, wall thickness, quantity, inspection requirements and delivery destination.

Can evaporator tube boxes be supplied as spare parts?

Yes. Evaporator tube boxes are often supplied as boiler spare parts for maintenance, replacement and retrofit projects.
